Flexible in use and transportation
Whether it concerns work in the field of infrastructure, on construction sites, for gardeners or earth moving.

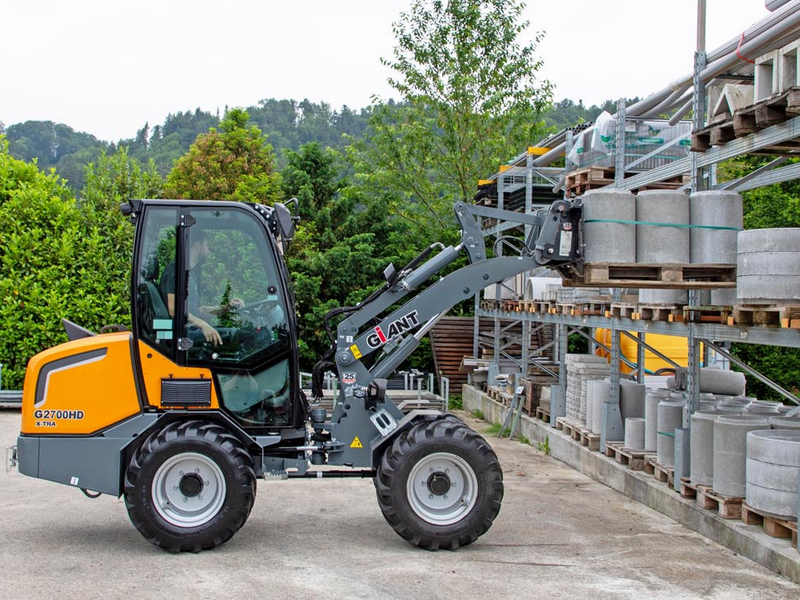

The G2700 X-TRA HD can be used for all sectors and can be used all year round. Using the hydraulic quick coupler, it is possible to change tools within seconds and adapt the machine to the current work.
The G2700 X-TRA HD is powered by a 50 hp Kubota engine (Stage V) and driven by 8 tons axles with limited slip.
This gives the compact loader a pulling force of 20,000 N and a maximum driving speed of 25 km/h.
|
Engine |
Kubota D1803 CR (3 cylinder), Stage V with DOC and DPF |
|
Engine power |
50 hp / 36 kW |
|
Fuel |
Diesel |
|
Service weight1 |
2,550 kg |
|
Lifting capacity |
2,325 kg |
|
Tipping load2 |
2,850 kg |
|
Lifting height2 |
2,498 mm |
|
Length without bucket |
3,405 mm |
|
Width on standard tires |
1,100 mm |
|
Driving mechanism |
Hydrostatic 4 wheel drive with automotive control with 8 tons axles. Planetairy end drive. |
|
Control |
Drive back and forward through electrical switch |
|
Differential lock |
Limited slip on both axles |
|
Pulling force |
20,000 N |
|
Driving hydraulics |
75 ltr/min (420 bar) |
|
Working hydraulics |
51 ltr/min (230 bar) |
|
Driving speed |
0-10 km/h, 0-25 km/h (with automatic gear) |
|
Parking brake |
Drum brakes |
|
Colour |
GIANT yellow / GIANT grey / black |
1 Measured with earthbucket
2 Measured on hinge point in straight position on standard
tires
Standard version
Oil cooler
Dimensions
|
A |
Wheelbase |
1,700 mm |
|
B |
Total length (without bucket) |
3,468 mm |
|
C |
Total length (with bucket) |
4,239 mm |
|
G |
Seat top height |
1,380 mm |
|
H |
Max. height with ROPS/FOPS safetyroof |
2,339 mm |
|
I |
Max. height with ROPS/FOPS cabin |
2,339 mm |
|
J |
Height frontframe |
1,513 mm |
|
K |
Dumping height |
1,753 mm |
|
L |
Max. height pivot |
2,517 mm |
|
M |
Max. height with bucket |
3,104 mm |
|
N |
Rollback angle (on the ground) |
42° |
|
O |
Rollback angle at max. lifting height |
46,4° |
|
P |
Dumping angle (max.) |
36,5° |
|
Q |
Loading angle (max.) |
25,3° |
|
R |
Diameter standard tire |
Ø850 mm |
|
1A |
Maximum radius external |
3,045 mm |
|
1B |
Radius at the outer edge |
2,623 mm |
|
1C |
Inside turning radius |
1,523 mm |
|
1D |
Min. machine width |
1,100 mm |
Dimensions are measured on standard tires
TOBROCO-GIANT offers more than 100 different attachments so your machine can be used all year long. By choosing the right attachment it is possible to adjust your GIANT to working conditions for agricultural purposes, construction, material handling, private use and many other areas of application. Clear every job with one machine!
 |
