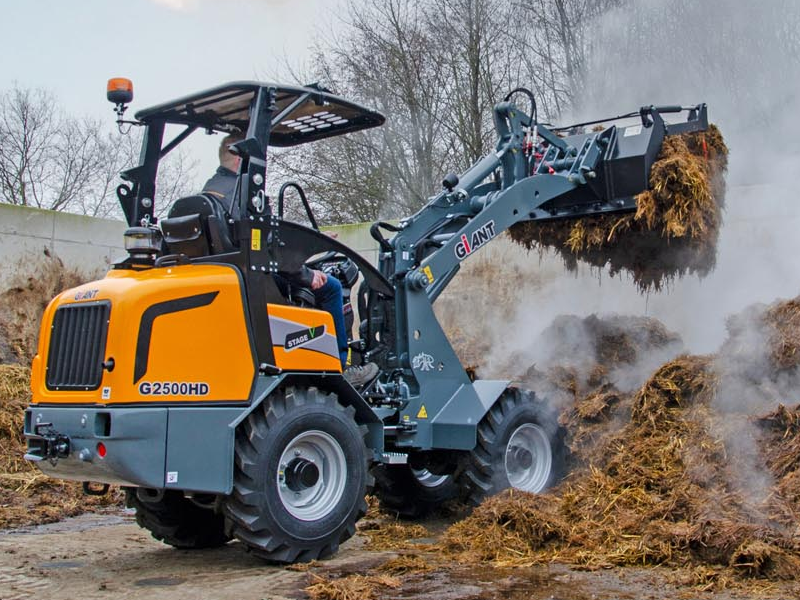

The G2500 HD is equipped with a hydrostatic 4 wheel drive, 2 gears and 8-ton planetary axles. This ensures that it is comfortable to work with this articulated loader.

Certainly, because the G2500 HD comes as standard with a luxury seat, double-acting function at the front and ROPS / FOPS, certified, safety roof

Standard version

Hitch: GIANT Standard (Hydraulically)
ROPS / FOPS safety roof, incl. safety doors left and right
The double-acting hydraulic valve at the front (mechanical)
Hydraulic service break on 4 wheels
Floating position on lifting cylinder(s)
Luxury seat with safety belt, armrest, and extended backrest
Main switch
Towing hook at the back
1 Counterweight integrated into the bumper
Working light on the lifting arm
Cyclone filter
Oil cooler

Engine	Kubota V1505 (4 cylinders),
Engine power	26 hp / 19 kW
Fuel	Diesel
Service weight1	2,400 kg
Lifting capacity	1,750 kg
Tipping load2	2,000 kg
Lifting height2	2,964 mm
Length without bucket	3,247 mm
Width on standard tires	1,100 mm
Driving mechanism	Hydrostatic 4 wheel drive with automotive control with axles
Control	Drive back and forward through electrical switch
Differential lock	Automatic differential lock on both axles
Driving hydraulics	84 ltr/min (350 bar)
Working hydraulics	51 ltr/min (170 bar)
Driving speed	0 - 10 km/h - 0 - 20 km/h
Parking brake	Drum brakes
Colour	GIANT yellow / GIANT grey / black

1 Measured with earth bucket
2 Measured on hinge point in a straight position on standard tires

Dimensions

undefined

A	Wheelbase	1,643 mm
B	Total length (without bucket)	3,247 mm
C	Total length (with bucket)	4,015 mm
D	Length 3-point lifting arm	540 mm
E	Min. height 3-point hitch	253 mm
F	Max. height 3-point hitch	652 mm
G	Seat top height	1,296 mm
H	Max. height with ROPS/FOPS safety roof	2,277 mm
I	Max. height with ROPS/FOPS cabin	2,300 mm
J	Height frontframe	1,686 mm
K	Dumping height	2,099 mm
L	Max. height pivot	2,919 mm
M	Max. height with bucket	3,487 mm
N	Rollback angle (on the ground)	43°
O	Rollback angle at max. lifting height	45°
P	Dumping angle (max.)	43°
Q	Loading angle (max.)	28°
R	Diameter standard tire	ø760 mm
1A	Maximum radius external	2,972 mm
1B	Radius at the outer edge	2,560 mm
1C	Inside turning radius	1,460 mm
1D	Min. machine width	1,070 mm

Dimensions are measured on standard tires

Tires


10.0/75x15.3 AS	31x15.5-15 AS	31x15.5-15 X-trac
(Standard)


31x15.5-15 SKID	31x15.50-15 GRASS

Special options


ROPS / FOPS Safety roof standard	ROPS / FOPS Safety roof deluxe	Glass doors for ROPS / FOPS safety roof deluxe


ROPS / FOPS Foldable safety roof	ROPS / FOPS Foldable safety roof deluxe	ROPS / FOPS Cabin


Mudguard widener metal	Combi towing hook	Multicoupler


Hand throttle	Hand inching	Pro-Inching

Stabilo system (patented)
