G2700E TELE HD Specifications

Service weight ¹

2.695 kg

Lifting height ²

3.710 mm

Machine height ³

2.390 mm

Standard tires

11.5/80x15.3 AS

Electric motor

13 kW

Hill-Hold control

Automatic brake prevents rolling back on slope

Working hydraulics

35 ltr/min (170 bar)

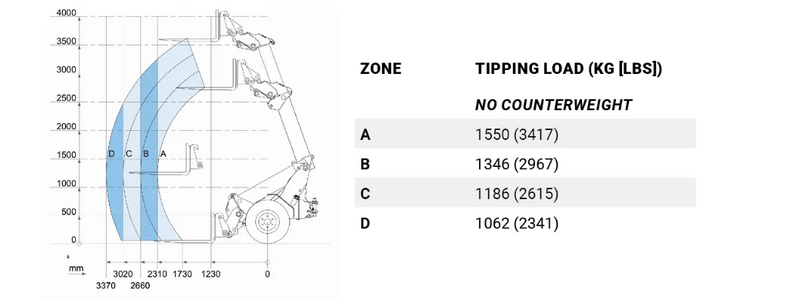

Tipping Load ²

See table above kg

Length without bucket

3.590 mm

Width on standard rubber tracks

1.150 mm

Travel Speed

3-speed (0-5 / 0-12 / 0-17 km/h)

Energy recuperation

Automatic charging of the battery during rolling out

Pulling force

16.000 N

Parking brake

Electronic brake on electric motor; disc brake on drive shaft

¹ Measured with earthbucket

² Measured with counterweight and driver ± kg

³ Measured on standard tyres with safety roof
