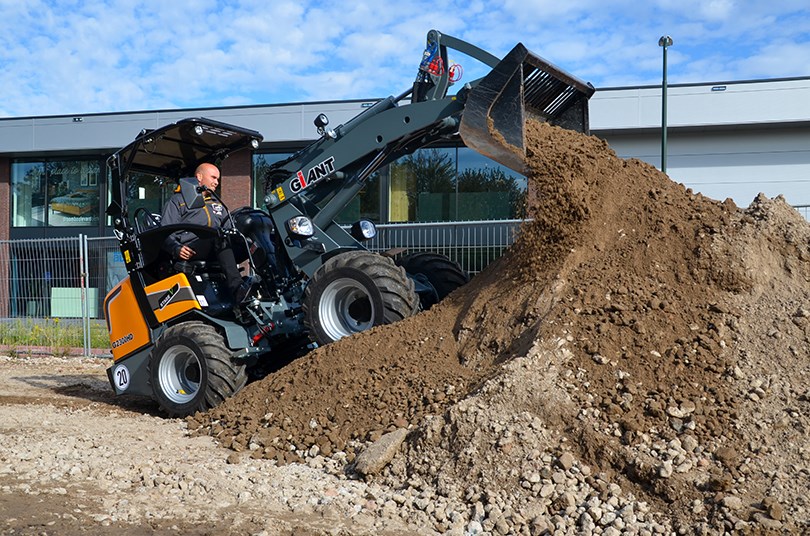

Lastikli Yükleyici-G2300 HD




Standard versiyon

  • Standart versiyon
  • Bağlantı plakası: GIANT Standart (Hidrolik kontrollü)
  • ROPS / FOPS emniyet tavanı, sağ ve sol emniyet kapıları
  • Önde çift etkili hidrolik çıkış (mekanik)
  • Park freni: 4 tekerlekten hidrolik
  • Paralel kaldırma özelliği
  • Emniyet kemeri, dayama kolçağı, uzatmalı arka dayamalı operatör koltuğu
  • Ana sviç
  • Römork çekme topuzu
  • Ön bomda çalışma lambası
  • Ön temizleme filtresi
  • Yağ soğutucu



EngineKubota V1505, Stage V
Engine power26 HP / 19 kW
FuelDiesel
Service weight12.300 kg
Lifting capacity1.650 kg
Tipping load21.595 kg
Lifting height22.825 mm
Length without bucket3.065 mm
Width on standard tires1.080 mm
Driving mechanismHydrostatic four wheel drive with automotive control 8 tons planetary axles (HD version) with 23.000 N pulling force.
ControlDrive back and forward through electrical switch
Differential lockAxles with limited slip on both axles
Driving hydraulics65 ltr/min (360 bar)
Working hydraulics40 ltr/min (210 bar)
Driving speed(0-10 km/h, 0-20 km/h)
Parking brakeDrum brakes
ColourGIANT yellow / GIANT grey / black



1 Measured with earthbucket
2 Measured on hinge point in straight position on standard tires

Tipping loads

Video



Dimensions

undefined

Wheelbase1.515 mm
B    Total length (without bucket)3.065 mm
Total length (with bucket)3.690 mm
Length 3-point hitch622 mm
3-Point hitch in lowest position134 mm
F3-Point hitch in highest position797 mm
Seat height1.256 mm
Max. height with ROPS/FOPS safety roof2.300 mm
Max. height with ROPS/FOPS cabin2.284 mm
JHeight front frame1.480 mm
KMax. dumping height1.988 mm
LLifting height 2.825 mm
MHeight with bucket3.392 mm
NRollback angle on the ground43°
ORollback angle at max. lifting height53°
PMax. angle for bucket emptying47°
QDrive-up angle29°
ROuter size of tiresø760 mm
1DWidth on standard tyres1.080 mm
1ATurning radius with bucket2.599 mm
1BTurning radius on outer edge 2.292 mm
1CInner turning radius1.179 mm

Dimensions are measured on standard tires

Special options

undefinedundefinedundefined

ROPS / FOPS
Safety roof
standard

ROPS / FOPS
Safety roof
deluxe

ROPS / FOPS
Foldable
safety roof



undefinedundefined

ROPS / FOPS
Foldable safety roof
deluxe

ROPS / FOPS
Cabin



undefinedundefinedundefined

Mudguard widener metal

Combi towing hook
with and without
counterweight

Multicoupler



undefinedundefinedundefined
Hand throttleHand inchingPro-Inching



undefined

Stabilo system (patented)

Click for video demonstration
