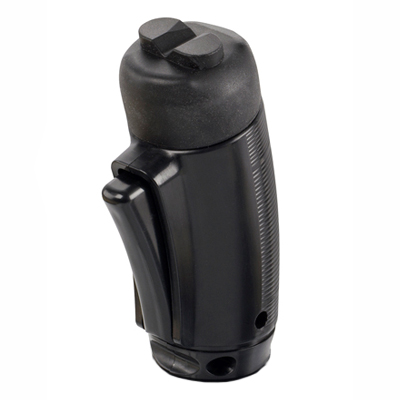

Maximum height above flange

161mm

Maximum grip diameter

40mm

Environmental sealing (IEC 60529)

IP67 (IP66 with trigger switch)

Number of switches

0 to 3

Action

Momentary Button (1), Rocker (1 +2) or Trigger

Switch operating force

Trigger

5N

Switch 1 or 2

7N

Maximum current @ 30Vdc

100mA

Expected life (operations)

1 million

Operating temperature

-25°C to +70°C

Storage temperature

-30°C to +80°C

TOP SWITCH POSITION

TRIGGER SWITCH

HAND REST

MG00

None

No

No

MG01

1

No

No

MG02

1 & 2

No

No

MG03

1 & 2

Yes

No

MG04

1 & 2

Yes

Yes

MG05

1

Yes

Yes

MG06

1 & 2

No

Yes

MG07

1

No

Yes

MG08

1

Yes

No

MG09

None

Yes

Yes

MG10

None

No

Yes

MG11

None

Yes

No

PIN

WIRE COLOUR

Common terminal (for top switches)

16

Black

Switch 1

6

Blue

Switch 2

3

Green

Trigger switch

4

Blue/Orange

Trigger switch

5

Yellow
