Telehandlers
Tobroco-Giant has literally elevated the design of the GIANT telehandler to a higher level with the GT5048. The extensive knowledge of the 4548 TENDO and the latest technologies have been used to develop a modern mini telehandler in the 2x2 meter class. This means that the compact mini telehandler is only 1.91 meters high and 1.65 meters wide.
Giant has elevated the design of the Giant telehandler with the GT5048. The extensive knowledge from the 4548 TENDO and the latest technologies have been used to develop a modern telehandler in the 2x2-meter class. This means that the compact telehandler is only 1.91 meters high and 1.65 meters wide.
GT5048 Standard Equipment
- GIANT Standard quick change system with hydraulic locking
- ROPS/FOPS safety roof incl. front and right window and front wiper
- Luxury seat with safetybelt, armrest and extended backrest
- Double acting valve at the front (mechanical)
- Transport securing device
- Hose rupture protection
- Proportional Load Moment Protection (EN 15000)
- Working light (halogen) front, on lifting arm
- Battery, 77 Ah
- Main switch
- Anti-theft protection with access code (not certified)
- Towing hook
- Cyclone filter
- Oil cooler
The GT5048 is powered by a 36 kW / 50 hp diesel engine from Kubota with a catalyst (DOC) and a soot filter (DPF) that comply with the latest EU Stage V regulations. Due to its compactness, four-wheel steering, and a lift height of 4.8 meters, the GT5048 is ideal for lifting materials in tight spaces.

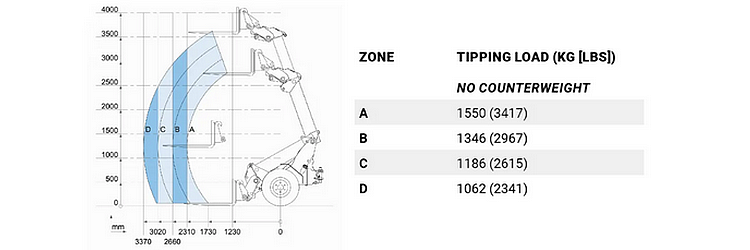

Tipping loads of the machine
The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping over. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.
|
GT5048
Specifications
|
|
Service
weight ¹
|
2950 kg
|
|
Lifting
height ²
|
4800 mm
|
|
Machine
height ³
|
1900 mm
|
|
Standard
tires
|
10.00/75-15.3 AS
|
|
Engine
|
Kubota D1803 CR (STAGE V)
|
|
Engine power
|
50 hp
|
|
Fuel tank
capacity
|
38 l
|
|
Type
|
Hydrostatic four wheel drive
|
|
Differential
|
Four-wheel steering
|
|
Pulling
force
|
22.600 N
|
|
Working
hydraulics
|
51 l/min (230 bar)
|
|
Tipping Load
²
|
2490 kg
|
|
Length
without bucket
|
3135 mm
|
|
Width on
standard tires
|
1600 mm
|
|
Travel Speed
|
0-7 / 0-25 km/h
|
|
Cylinders
|
3
|
|
Engine power
|
36 kW
|
|
Oil tank
capacity
|
75 l
|
|
Transmission
|
Automotive control
|
|
Final drive
|
8 tons axles, heavy planetary end drive
|
|
Driving
hydraulics
|
84 l/min (450 bar)
|
|
Parking
brake
|
Disk brakes
|
|
¹ Measured
with earthbucket
|
|
² Measured
with counterweight and driver ± kg
|
|
³ Measured
on standard tyres with safety roof
|
