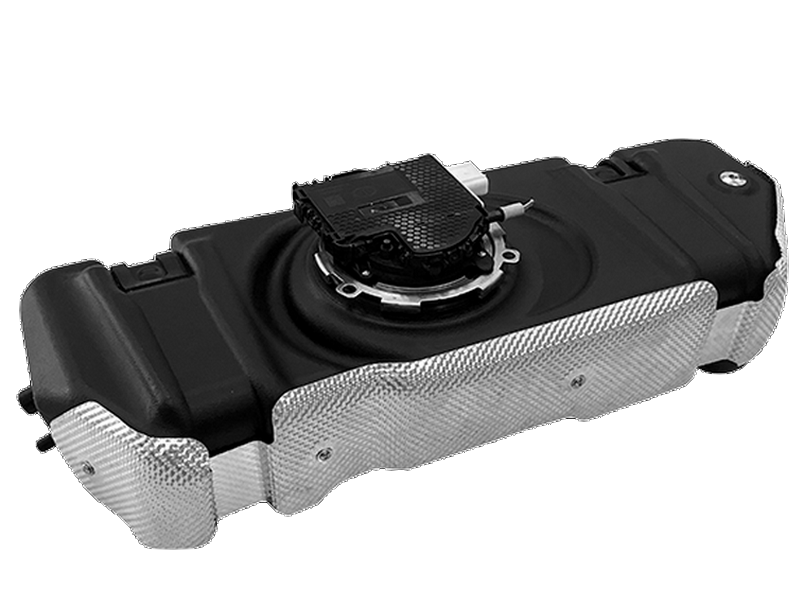

12L AdBlue Tank
KUS's first AdBlue tank for pickup trucks;
AdBlue tank and pipes have a heat insulation design and can be installed near the heat source;
Has the advantage of high integration, the entire assembly includes AdBlue tank, bracket, extension filling tube, AdBlue pump, and other supporting parts.
Size : 692*281*212MM
Filling port : Comply with ISO 22241-5 standard;
Effective volume of AdBlue tank :12LTraffic raise: Can meet 40L / min high speed
1. AdBlue tank can store AdBlue;
2. The bracket provides the function of installing and fixing the AdBlue tank on the frame;
3. The extended filling tube provides an AdBlue filling channel;
4. The AdBlue pump can extract AdBlue, heat, and thaw AdBlue and detect the AdBlue level concentration.
5. The heat insulation design on the AdBlue tank can isolate the high-temperature heat source at 400 ℃.
