DC SOLONOIDS FOR DIESEL ENGINES

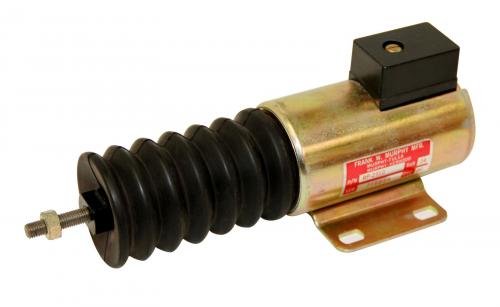

RP Series Pull / Push DC Solenoids
The Murphy Push/Pull DC Solenoids provide single unit versatility for engine applications, such as shutdown.
One solenoid offers pull/push operation.
The RP Series has no internal switches, reduces coil burnout and reduces adjustments while boosting reliability.
The solenoid offers high force in its small size. It can be used with most engines’ start systems. A choice of two models and two voltages is available.
All models come complete with return spring and rubber seal boot.
An SD85 Solenoid Drive Time Delay is also available to greatly reduce the possibility of coil burnout and to facilitate low current-piloted operation.
Model No:
DC Solenoids Description
RP2307B 12VDC, 1 in. (25 mm) stroke, 10 lbf (44 N) pull, 25 lbf (111 N) hold
RP2308B 24VDC, 1 in. (25 mm) stroke, 11 lbf (49 N) pull, 27 lbf (120 N) hold
RP2309B 12VDC, 1-1/2 in.(38 mm) stroke, 13 lbf (58 N) pull, 32 lbf (151 N) hold
RP2310B 24VDC, 1-1/2 in.(38 mm) stroke, 17 lbf (75 N) pull, 35 lbf (155 N) hold
