Max. Working Pressure
Material
Mat. Handle
Mat. Seal
Medium
Norm
Threads
Temperature
PN 10/ 25 bar
14.401
14.401
Perbunan
aggressive
MIL/DIN EN
ISO 228/ DIN 2999
-40°/+95°C
1

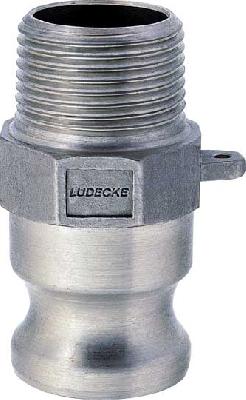

Plugs with male thread DIN EN 14 420-7 form FF
Type-Size
Thread
DN
h
Ident.-Size
Weight
pc/g Type No.
50 = 1/2"
R 1/2"
15
49
24
93
50-F-SS
75 = 3/4"
R 3/4"
20
64
32,1
185
75-F-SS
100 = 1"
R 1"
25
72
36,7
258
100-F-SS
125 = 1 1/4"
R 1 1/4"
32
81
45,5
477
125-F-SS
150 = 1 1/2"
R 1 1/2"
40
82
53,4
565
150-F-SS
200 = 2"
R 2"
50
90
63
650
200-F-SS
250 = 2 1/2"
R 2 1/2"
65
105
75,8
1317
250-F-SS
300 = 3"
R 3"
80
104
91,5
1716
300-F-SS
400 = 4"
R 4"
100
114
119,5
2804
400-F-SS
