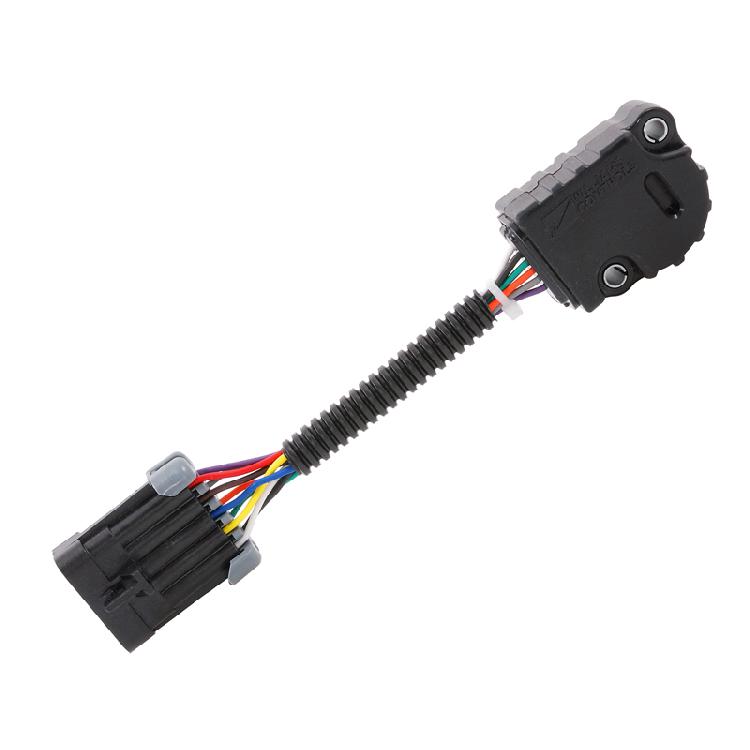

WM900-Non-Contact Sensors-Dual Hall-Effect
WM900 - NON-CONTACT SENSORS - DUAL HALL-EFFECT

Product Brand: Williams Controls

A solid-state rotary position sensor that provides a dual linear output voltage proportional to absolute shaft rotation in either direction from a reference angle.

The WM-900 works on the Hall-effect principle, wherein the magnet rotates in the sensor rotor and the Hall-effect sensor is mounted to the stationary body.

When the magnet, which is mounted on the rotor, is rotated from the low-end stop to the high-end stop, there is a change in the magnetic field angle sensed by the Hall-effect sensor.

The change in the magnetic field angle results in a varying voltage, current or PWM duty cycle depending on sensor configuration.

This highly configurable sensor is able to support a broad range of customer requirements.

This design allows for printed circuit board assembly (PCA) configurations for a wide variety of output signals, actuation forces and is able to operate as a standalone sensor, with rotor and magnet, or mate up to an external magnet.

Typical output signals can include:
  • Two electrically isolated APS circuits
  • One APS and up to two IVS circuits
  • Two electrically isolated PWM circuits
  • Two electrically isolated current output up to 20mA
  • Two APS with one IVS circuit

Ratings are as follows:

Electrical
  • EMC/EMI Resistance per SAE J1113-1
Mechanical
  • Packard Electric “Metri-Pack” Series 150 Connector (standard)
  • Up to 360° of rotation
  • 10-million endurance cycles
Environmental
  • Williams Controls Environmental Test Specification WDS-010
  • Ingress protection rating IP67, IP68, and IP69k
Note:
These specifications represent the expected minimum performance of the sensor.
This information does not constitute a warranty that the product will meet the above specifications while used in specific applications or test equipment.
Specific requirements may vary, based on the sensor configuration.
